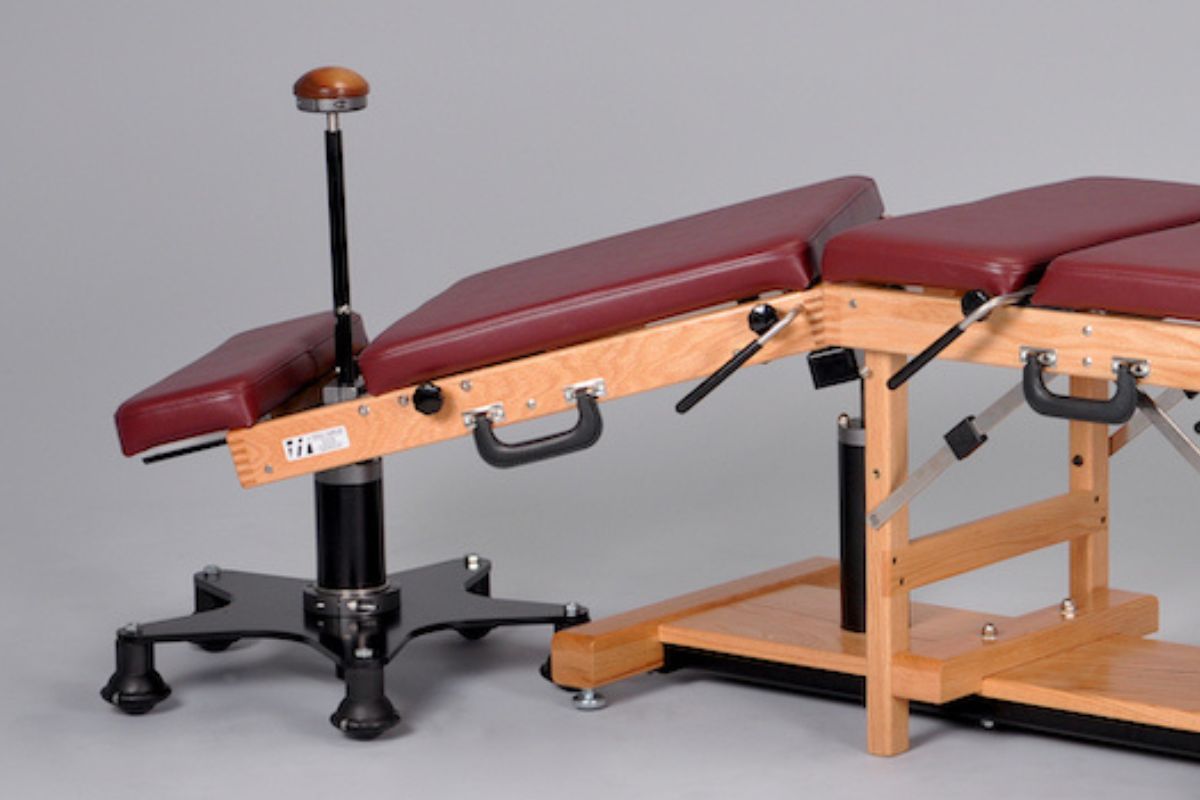

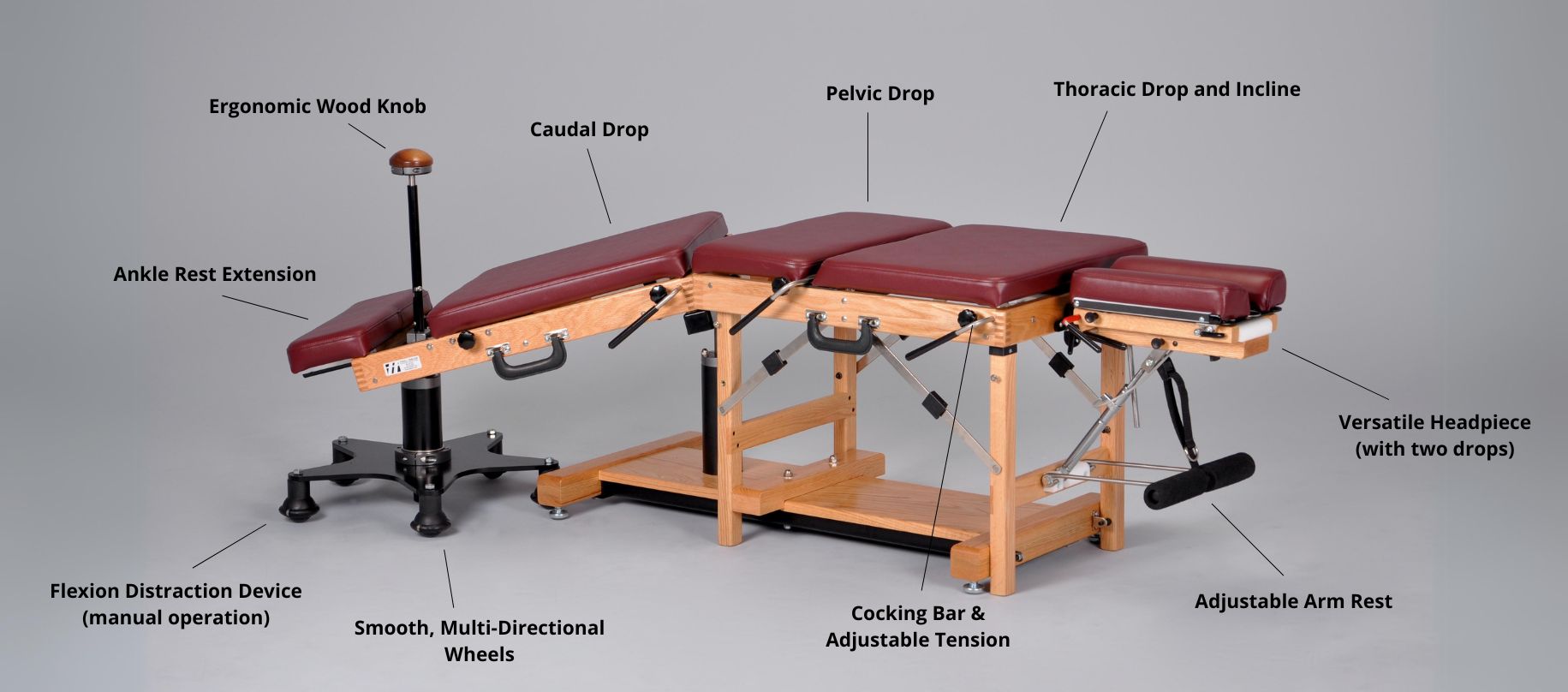

Lateral Flexion (Tour)

Side to side traction with compound angles.

Add Lateral Flexion to the Flexion Distraction Device and now all angles are possible.  Ingeniously retrofits to Tours built after 2001.  Locks at any angle.  Gentle, smooth and ergonomic operation. Please note that the Lateral Flexion unit is not portable.

SKU: TPT Categories: ,

Description

Features
  • Oak or Walnut construction
  • Lateral Flexion:  30 degrees right and left
  • Must be used in conjunction with Flexion Distraction Device (your Tour must already have Flexion Distraction, or you must purchase it now)
  • Multiple compound angles possible
  • Locks at any angle
  • Caudal drop can be used at any angle
  • Lateral Flexion and Flexion Distraction can not be used when Tour is mounted to Elevating Conversion Base
  • Retrofit Kit available for 20″ – 24″ Tours from 2001 – May 2013
  • Lateral Flexion is not portable

Lateral Flexion

Lateral Range / Caudal Drop
  • Must be used in conjunction with Flexion Distraction Device (purchased separately)
  • Lateral Flexion:  30 degrees right,  30 degrees left
  • Compound angles possible
  • Locks at any lateral, flexed or compound angle
  • Caudal Drop can be used at any angle
  • Retrofit Kit for 20″ – 24″ Tours from 2001 – May 2013
  • Lateral Flexion Base is not considered “portable”
Lateral Flexion Base
  • Oak or Walnut construction
  • Non-skid feet
  • 54 lbs  (25 kgs)
  • 40″ x 20″ x H  (4″ less than Tour table height)
Conversion Time
  • Attaches to and detaches from Tour in minutes

Flexion Distraction

Flexion Range / Caudal Drop
  • 17 – 18″  Tour height:  Lateral Flexion & Flexion Distraction not available
  • 19 – 20”  Tour height:  0 – 11.5 degrees
  • 21 – 24”  Tour height:  0 – 13 degrees
  • Locks at any angle
  • Caudal Drop can be used at any angle
  • Retrofit Kit for 19″ – 24″ Tours from 2001 – May 2013
Flexion Distraction Device
  • Smooth, gas spring operation
  • Star Base:  21″ diameter – Black (optional Red Oak or Walnut)
  • Operating Knob:  3.25″ diameter, ergonomic hand-turned hardwood – Choice of Black, Red Oak or Walnut
  • 5 specialty wheels
  • (2) 10 lb leg counterweights provided
  • Lateral Flexion can be added at anytime
Conversion Time
  • Attaches to or detaches from the Tour in one minute
Retrofit Kit
  • Available for 19″ – 24″  Tours from 2001 – May 2013
  • Not available for Tours prior to 2001
Accessories Recommended
  • Comfort Pillow for proper patient positioning
  • Use office mat on all floor surfaces for optimal rolling performance and to prevent potential wheel markings (readily available at retail stores)
Travel Case
  • Black, durable corrugated plastic construction
  • Custom die-cut, low abrasion foam for maximum protection of component parts
  • Straps secure case closed  (Blue, Red, Yellow or Black)
  • 26″ x 25″ x 8″  (66 x 64 x 20 cm)
  • 6 lbs  (3 kgs)

Videos

Flexion Distraction Option for Portable Tables

Tour Flexion Distraction Device

Retrofits to Tours after 2001, with table heights of 18″ or greater.

Lateral Flexion for Tour Portable

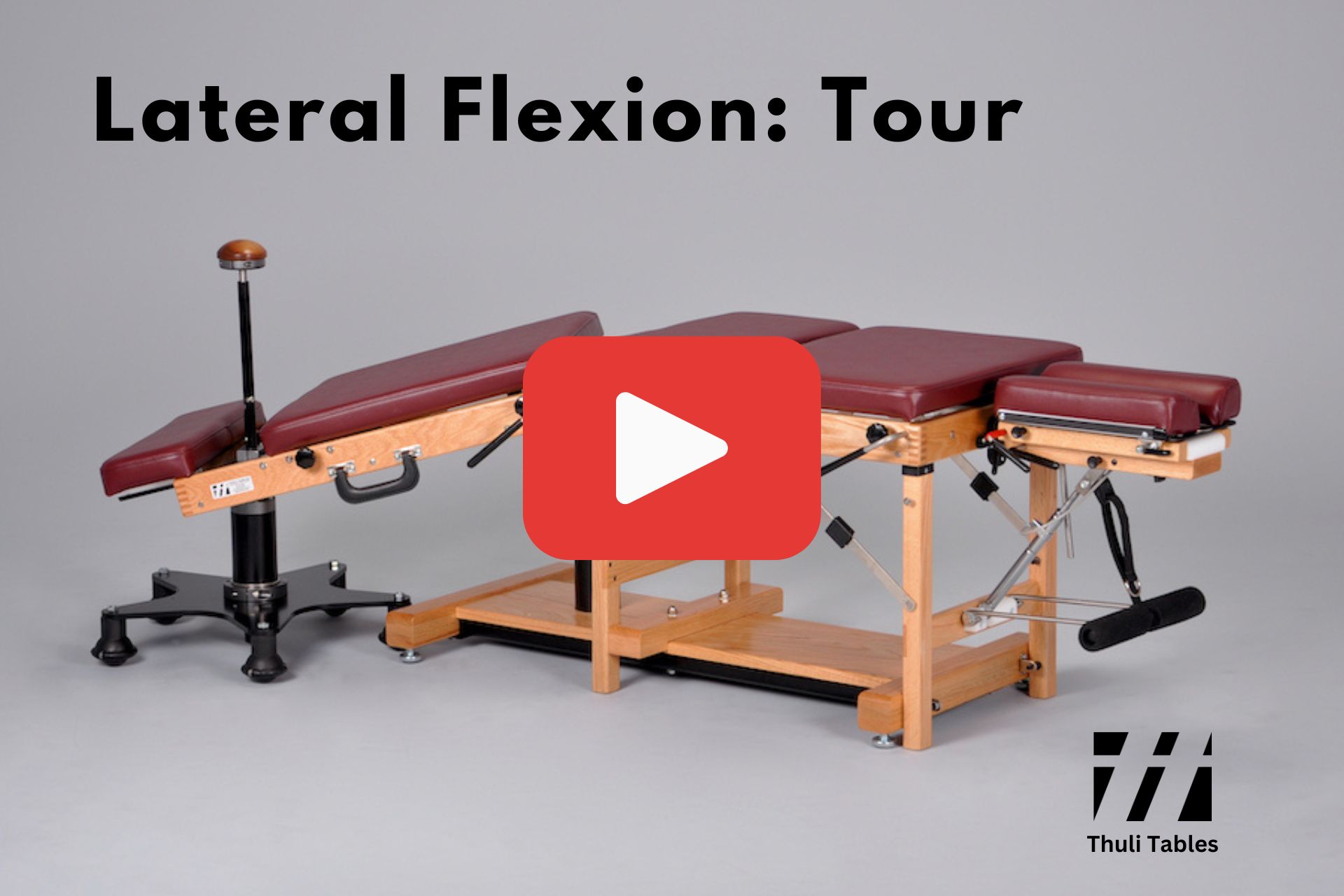

Tour Lateral Flexion

Dr. Thuli demonstrates how to attach and operate both the Lateral Flexion Base and Flexion Distraction Device.

Shipping

We build all products at our facility in Wisconsin.  Completion time varies, so please contact us for the current lead time.  We offer a Rush Service if needed.  Please inquire for details.

Transit time is 1 – 10 business days, based on the destination address.  For a shipping cost, please contact us with your full delivery address and we will promptly provide you with a quote.

International Sales:   Our shipping cost does not include import duty and taxes, which are determined at the time of custom clearance.  Every country uses a different formula for calculating the import duty and taxes, which are based on the value of the products ordered.  These fees are payable to the shipping company prior to delivery.  Brokerage fees are included in the shipping cost, except for UPS Standard Service to Canada and US Postal Service shipments.

ShipperUPS, DHL or Freight
Box size57” x 26″ x 7″  (145 x 66 x 18 cm)
Shipping weight92 lbs  (31 kgs)

Prices



$ 1300Oak Lateral Flexion (must use in conjunction with Flexion Distraction, purchased separately)
$ 1450Walnut Lateral Flexion (must use in conjunction with Flexion Distraction, purchased separately)
