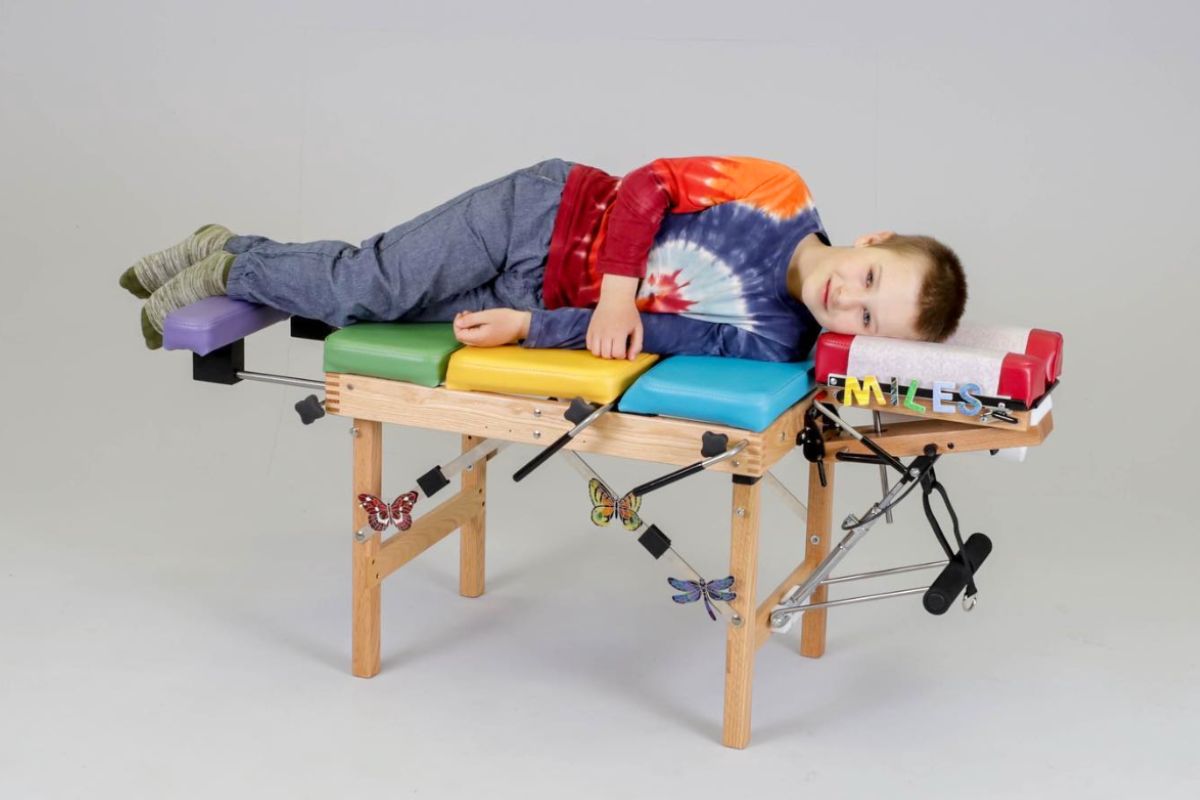

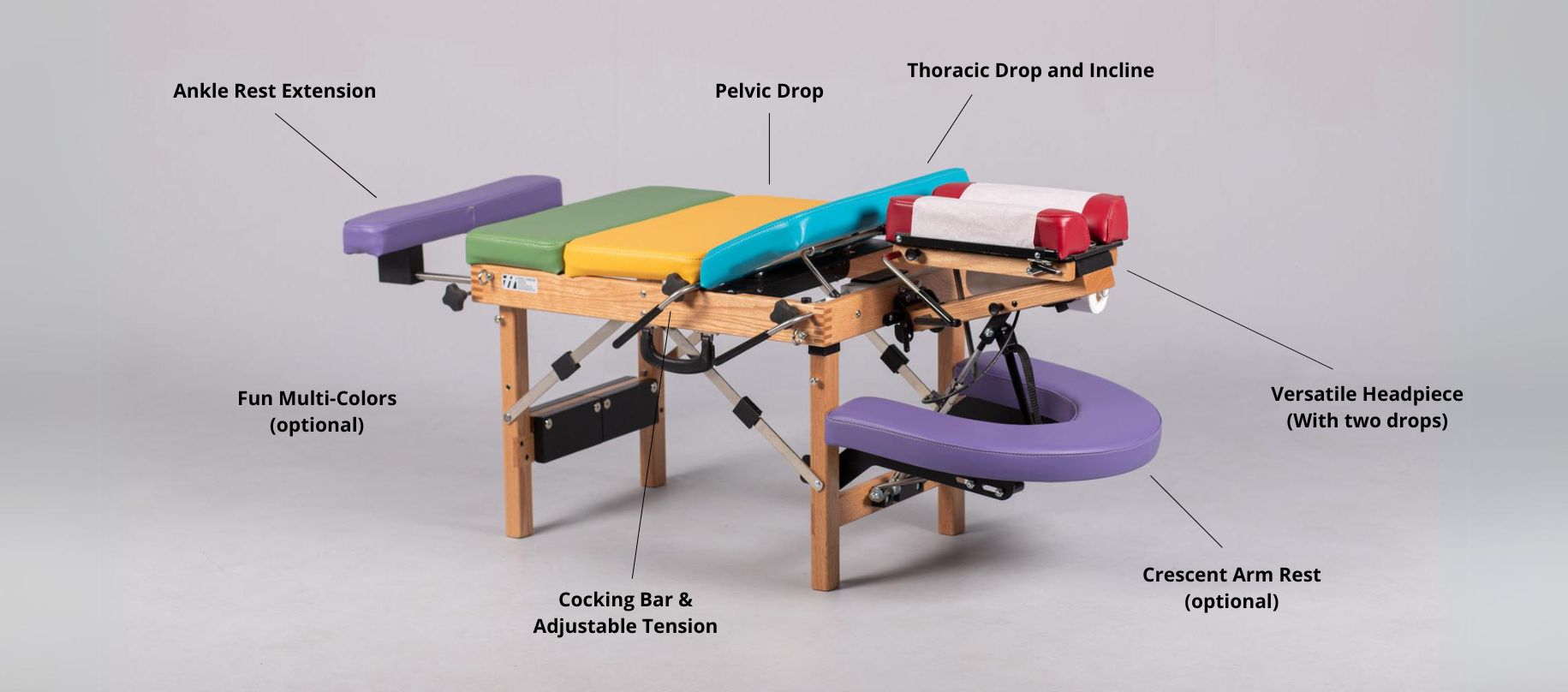

The Junior

Headpiece

• Flexion: 0 – 5°, Extension: 0 – 23°
• Vertical Elevation: 0 – 6.75” (0 -17 cm)
• Straight Drop: & Forward Motion Drop
• Drop height: Standard 0.54″ (13.7 mm) or Short 0.35” (9 mm)
• Adjustable tension
• Compound angles possible, locks into position
• Cushions are adjustable in width at front end
• Contoured cushions: 2” thick (0.5” soft foam laminated to 1.5” firm foam)
• Cocking lever & adjustable tension control on one side of table (patient’s right while prone)
• Paper Hanger, Hold-Down & Tear-Off Bar (One roll of 8.5″ headpiece paper provided)

Thoracic Drop & Incline

• Drop height of 0.7”  (17.5 mm) at front
• Inclines to fixed 30°  (7.5” /19 cm) at front.  Does not drop in inclined position.
• Cocking lever on one side of table (patient’s right while prone)
• Adjustable tension control on one side of table (patient’s right while prone)
• Stainless steel plunger (with compression spring) in high density polyethylene housing
• 8.5” x 20”  (21.5 x 51 cm)

Pelvic Drop

• Drop height of 0.7”  (17.5 mm) at front
• Cocking lever on one side of table (patient’s right while prone)
• Adjustable tension control on one side of table (patient’s right while prone)
• Stainless steel plunger (with compression spring) in high density polyethylene housing
• 10.5” x 20”  (27 x 51 cm)

Prone Arm Rest

• Adjustable position
• Optional Crescent Arm Rest (see Accessories)

Ankle Rest Extension

• Adjustable Extension: 0 – 7” (0 – 18 cm)
• Locks in any position
• 3” x 20” (7.5 x 51 cm)
