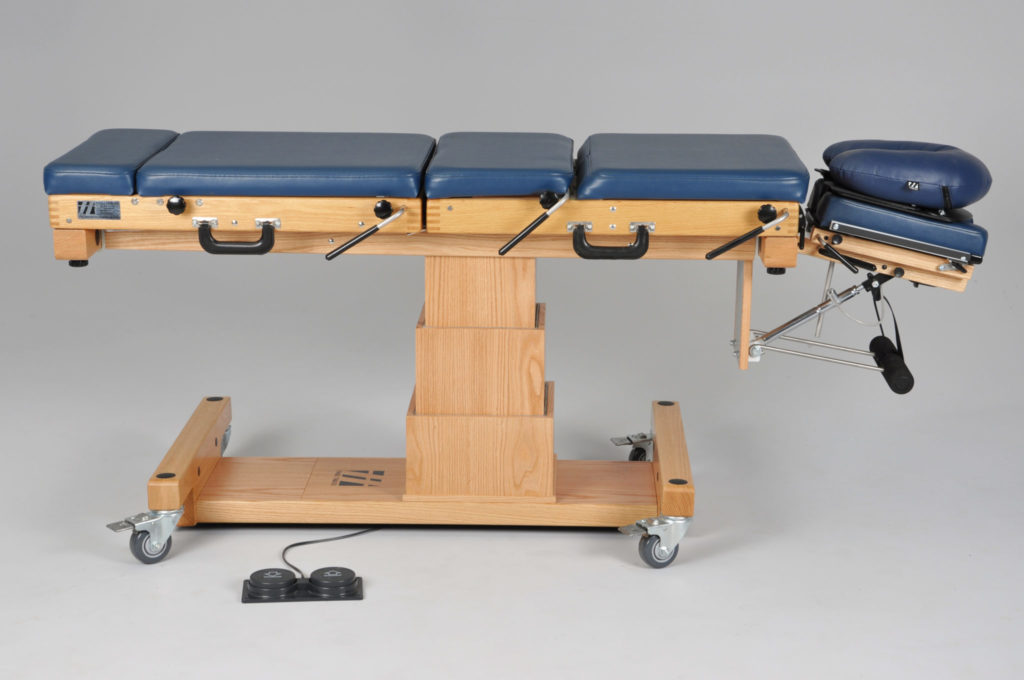

Ingeniously converts the Tour portable to an elevating table in minutes. Simply fold the Tour legs in their storage position and mount it to the Conversion Base using four hand-turned knobs. Detaches quickly when the need for a portable table arises.
Do you own our 300 Stationary table and want to convert it to an elevating table? The Conversion Base may be possible to add (depending on year built). Contact us for details.
| Vertical Travel | 0 – 10” (0 – 25 cm), Quiet & smooth |
| Vertical Speed | 1” (2.5 cm) per second |
| Weight Capacity | 650 lbs (409 kgs) |
| Electrical | 120 or 230 Volts |
| Foot Pedal | Electropneumatic foot pedal – Black (one) |
| Construction | Swiss-engineered & manufactured, Aluminum telescoping columns, Worm-geared linear drive |
| Electrical Cord | 10 ft (3 m) with ground – Grey |
| Cord Cover | 6 ft (2 m) long – Grey (optional) |
| Length: | Base: 53” (135 cm). With Tour attached: 66” – 72″ (168 – 188 cm) with Ankle Rest Extended |
| Width: | Base at widest point: 19” (48 cm). With Tour attached: 20” (51 cm) |
| Weight: | Metal: 130 lbs (59 kgs), Oak or Walnut: 144 lbs (65 kgs). With Tour attached: 195 – 210 lbs (88 – 95 kgs) |
| Choice of Base | Metal, Oak or Walnut (shroud over Metal) |
| Conversion Time: | Less than 5 minutes to attach or detach Tour to Conversion Base |
The height is the distance from the floor to the top of the table’s cushions when the Tour or 300 is mounted to the Conversion Base. The Conversion Base has a vertical range of 10 inches (25.4 cm) and is electrically controlled by a foot switch. Choose from the height options below.
Tour Conversion Base Height Range Options:
Without Wheels: 19” – 29” / 20” – 30” / 21″ – 31″ / 22″ – 32″ / (23 – 33″ metal only)
With Wheels, Metal Base: 19” – 29” / 20” – 30” / 21″ – 31″ / 22″ – 32″
With Wheels, Wood Base: 19″ – 29″ / 20″ -30″
300 Conversion Base Height Range Options:
Without Wheels: 19.5″ – 29.5″ / 20.5″ – 30.5″ / 21.5″ – 31.5″ / 22.5″ – 32.5″
With Wheels, Metal Base: 19.5″ – 29.5″ / 20.5″ – 30.5″ / 21.5″ – 31.5″ / 23.5″ – 33.5″
With Wheels, Wood Base: 19.5″ – 29.5″ / 20.5″ – 30.5″
Note: 300 Stationary tables built before April 2017 have thicker foam and will therefore be 1″ taller than the heights listed above.
Watch our Video: Choosing a Table Height
Conversion Base: Operation Video
Dr. Thuli demonstrates how to mount the Tour Portable to the ingenious elevating Conversion Base.
We build all products at our facility in Wisconsin. Completion time varies, so please contact us for the current lead time. We offer a Rush Service if needed. Please inquire for details.
The shipping cost and transit time varies with location. Please contact us with your full delivery address and we will promptly provide you with a quote.
International Sales: Our shipping cost does not include import duty and taxes, which are determined at the time of custom clearance. Every country uses a different formula for calculating the import duty and taxes, which are based on the value of the products ordered. These fees are payable to the shipping company prior to delivery. Brokerage fees are included in the shipping cost, except for UPS Standard Service to Canada and US Postal Service shipments.
| $ 2525 | Metal |
| 3125 | Oak |
| 3325 | Walnut |
| 200 | Locking Wheels |
| 25 | Cord Cover |
| 275 | Retrofit Kit for 1990-1999 Tours |
| $ 2725 | Metal |
| 3325 | Oak |
| 3525 | Walnut |
| 200 | Locking Wheels |
| 25 | Cord Cover |
