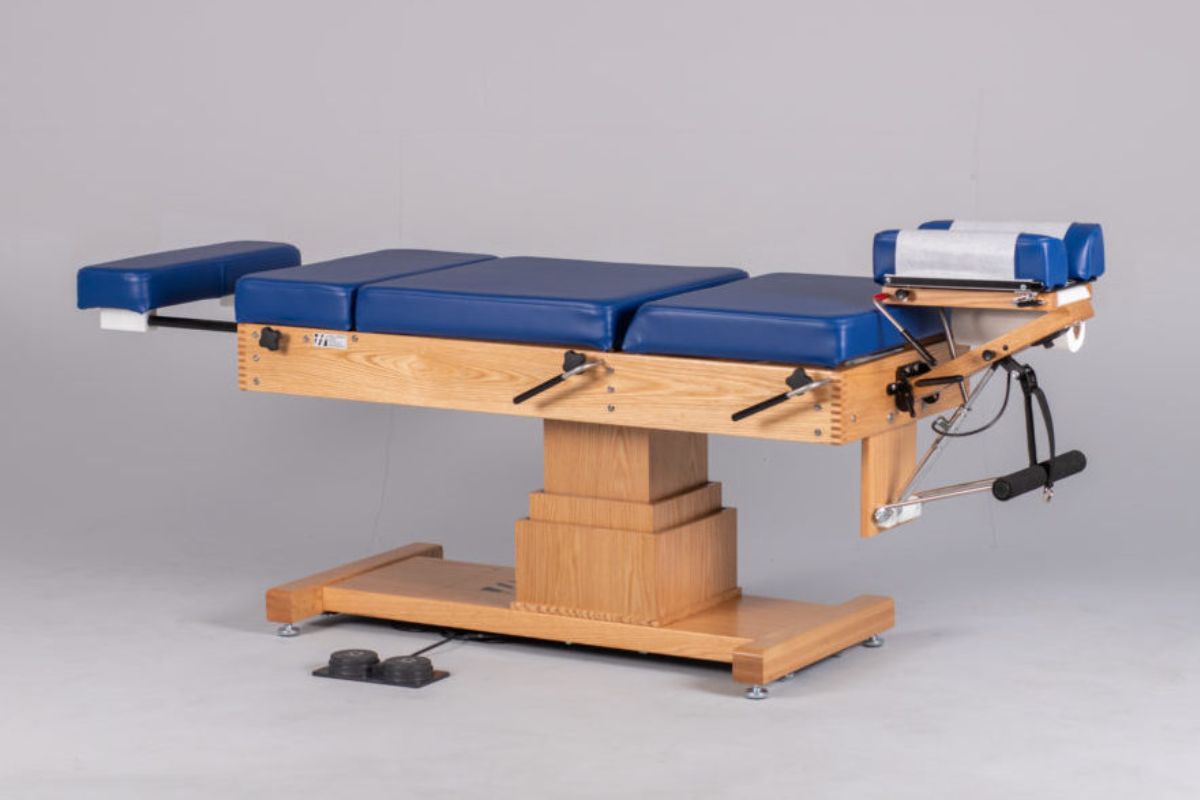

350 Elevation

Headpiece

• Flexion:  0 – 20°,  Extension: 0 – 15°
• Vertical Elevation:  0 – 6.5”  (0 – 16.5 cm)
• Straight Drop: & Forward Motion Drop
• Drop height: Standard 0.54″ (13.7 mm) or Short 0.35” (9 mm)
• Adjustable tension
• Lateral Motion (optional):  0 -20° right / 0 -20° left
• Compound angles possible, locks into position
• Contoured cushions
• Paper Hanger, Hold-Down & Tear-Off Bar

Prone Arm Rest

• Adjustable position

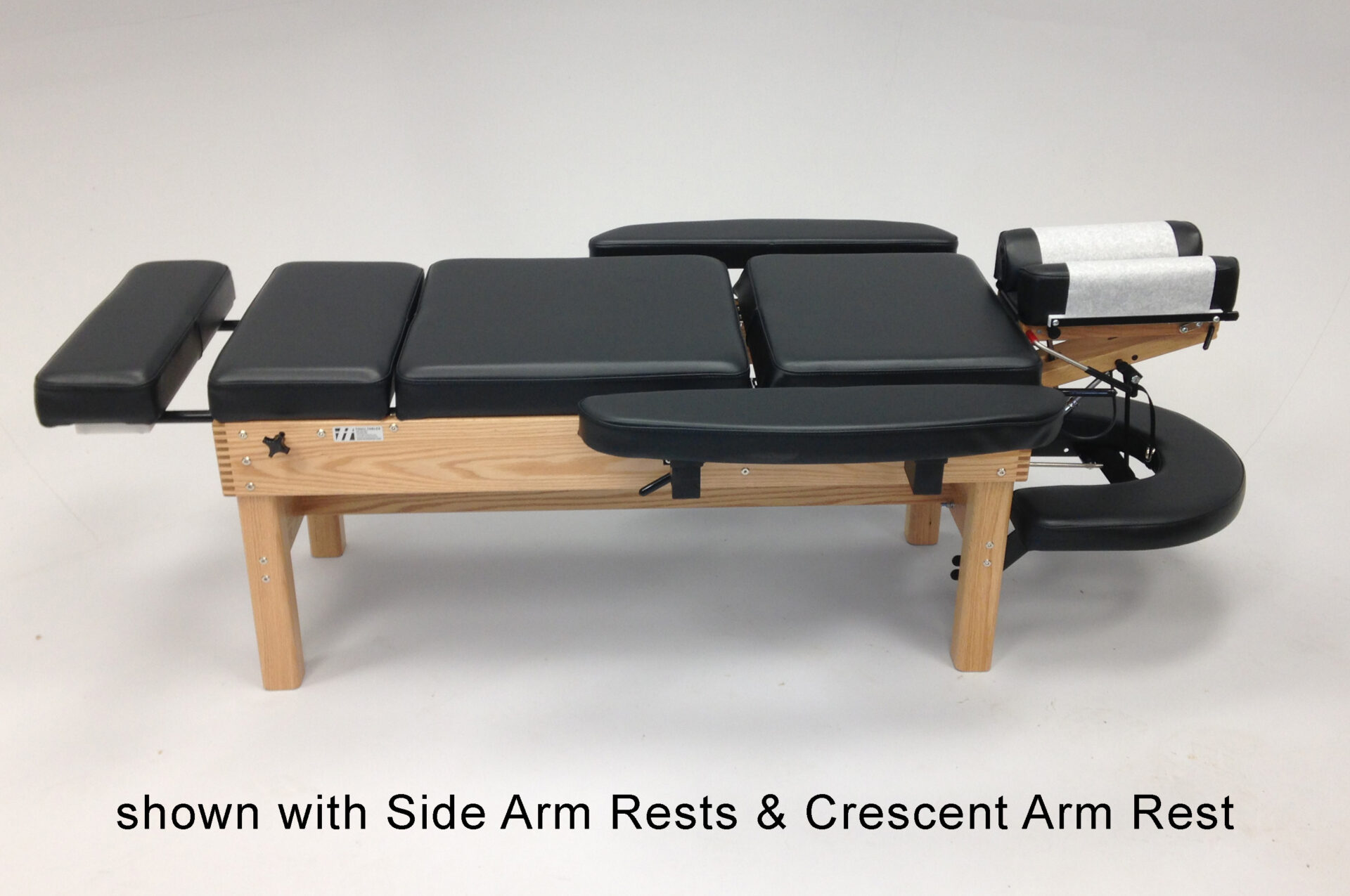

• Optional Crescent Arm Rest (see Accessories)

Thoracic Drop

• Drop height of 0.7” (17.5 mm) at front
• Thoracic section inclines to 20°  (5.5”  / 14 cm) height at front (does not drop in inclined position)
• Cocking levers on both sides of table
• Adjustable tension control on one side of table (patient’s right while prone)
• Stainless steel plunger (with compression spring) in high density polyethylene housing
• 16” x 20”  (41 x 51 cm)

Pelvic Drop

• Drop height of 0.7” (17.5 mm) at front
• Cocking levers on both sides of table
• Adjustable tension control control on one side of table (patient’s right while prone)
• Stainless steel plunger (with compression spring) in high density polyethylene housing
• 20” x 20”  (51 x 51 cm)

Ankle Rest Extension

• Adjustable Extension (standard):  0 – 11”  (0 – 28 cm)
• Adjustable Elevation (optional):  0 – 6″  (0 – 15 cm)
• Locks in any position
• 7” x 20”  (18 x 51 cm)
